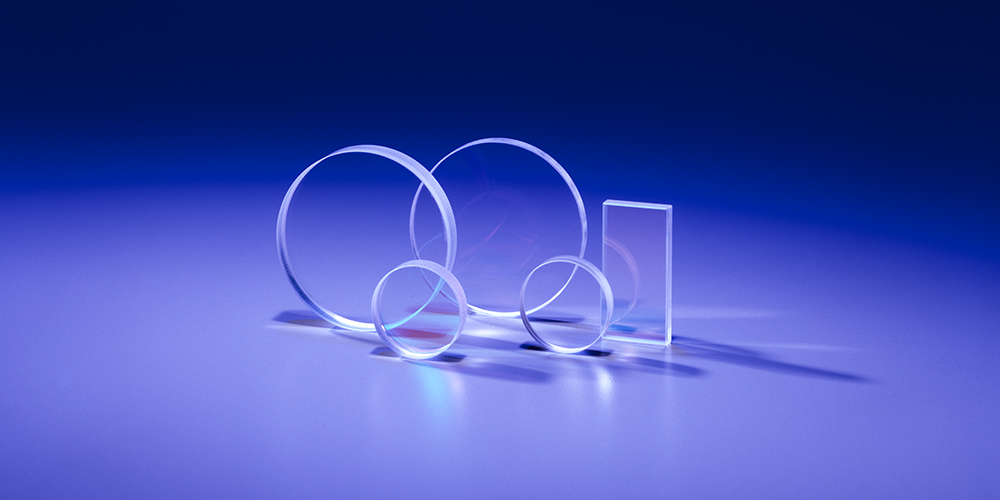

Acton Optics & Coatings windows are made from select grades of the finest available optical materials. VUV/UV windows are suitable for a large range of VUV-UV applications. Flat laser windows are suitable for high-power laser applications and as substrates for mirrors and beamsplitters.

Note: Excimer-grade CaF2 and MgF2 substrates are available for laser cavity optics and are available with transmittance traces for an additional charge. Contact us at info@actonoptics.com for more details.

Acton Products Content Query

  • 1.0” Part Number
    1.5” Part Number
    2.0” Part Number
    Substrate Material
    W1D-FLC
    W1.5D-FLC
    W2D-FLC
    Excimer-grade CaF2
  • W1D-FLM
    W1.5D-FLM
    W2D-FLM
    Excimer-grade MgF2

Specifications

Material

Excimer-grade CaF2, MgF2

Diameter Tolerance

+0.00/-0.005”

Thickness Tolerance

+/-0.25mm

Surface Figure

Both sides 1/10 Wave @ 632.8nm

Parallelism

3 arc min

Scratch/Dig

20-10

Chamfer

0.5mm x 45°

Clear Aperture

Central 85%

Acton Optics & Coatings can supply custom optics for your OEM applications.​
